Evaluation of acoustic radiation force impulse elastography (ARFI) in the diagnosis of hepatic fibrosis and portal hypertension

DN Amarapurkar, R Kashikar, S Lala, S Gautam, AD Amarapurkar
Department of gastroenterology & Hepatology, Bombay Hospital & medical research centre and SRL & Dr Avinash Phadke Laboratories,  Mumbai, India.


Corresponding Author:
Deepak N Amarapurkar
Email: amarapurkar@gmail.com

Abstract

Background: Transient elastography by fibroscan is widely used as non-invasive marker for liver fibrosis. Fibroscan has limited accuracy in patients with elevated serum bilirubin, ALT, ascites, BMI >30 kg/m2 and requires separate equipment for evaluation. ARFI is a new way of assessing liver fibrosis which is incorporated in ultrasound machine. In a prospective study we evaluated utility of ARFI in 171 consecutive patients undergoing liver biopsy and assessed misclassification rate of fibrosis in patients with elevated serum bilirubin, ALT, BMI >25 kg/m2 and ascites.
Methods: 171 consecutive patients (mean age 46.04±13.34 years, males 60%) undergoing liver biopsy were evaluated for ARFI by Acuson S2000, Siemens ultrasonography machine. Indications for liver biopsy were autoimmune liver disease (38), alcoholic liver disease (13), non-alcoholic fatty liver disease (24), cryptogenic liver disease (10), noncirrhotic portal hypertension (29), viral hepatitis (17) and miscellaneous (40). Liver biopsy was graded using Metavir classification. Aspartate aminotransferase to platelet ratio index (APRI) was calculated in each patient. ARFI and APRI values were correlated with fibrosis stage on liver biopsy. ARFI and fibrosis were compared with respect to serum bilirubin, ALT, BMI >25 kg/m2 and ascites.
Results: Mean ARFI score with interquartile range were 1.70±0.46 (1.33-1.99) in stage 0, 1.92±0.56 (1.45-2.16) in stage 1-2 and 2.49±0.60 (2.07-2.98) in stage 3 and 4 fibrosis. Mean ARFI and APRI values were significantly higher in stage 3 and 4 fibrosis as compared to fibrosis stage 0 and 1-2 (p 0.001). ARFI values were misclassified in patients with bilirubin > 10 mg/dl, ALT > 300 IU/L and ascites.
Conclusion: ARFI was reliable predictor of advanced fibrosis but could not differentiate stage 0 from early fibrosis. ARFI values were not reliable in bilirubin >10 mg/dl, ALT > 300 IU/L and ascites.

48uep6bbphidcol2|ID
48uep6bbphidvals|1767
48uep6bbph|2000F98CTab_Articles|Fulltext
Introduction

Liver fibrosis is a consequence of chronic inflammation which leads to accumulation of extracellular matrix including collagen in the space of Disse. This occurs in majority of chronic liver diseases such as hepatitis B, hepatitis C infection, alcoholic liver disease, non-alcoholic fatty liver disease (NAFLD), drugs or autoimmune liver diseases. Though the etiological agents differ, the pathophysiological responses are similar leading to fibrosis and cirrhosis. Cirrhosis is the end stage of fibrosis, which is characterised by the loss of normal architecture and vascular remodelling giving rise to portal hypertension.1,2 As the prognosis of chronic liver disease depends on the extent of fibrosis, recognition of fibrosis at earlier stages is preferable, as timely and appropriate treatment can reverse or prevent the cirrhosis.
Liver biopsy is considered the 'gold standard' for assessment of liver fibrosis.3 However it is an invasive procedure having several limitations in the form of complications, sampling errors and interobserver variability.4,5 Recently a large number of non-invasive tests for hepatic fibrosis are available.6,7 They are in the form of either serum markers (direct or indirect) or imaging modalities.8-17 Serum markers have major limitations to identify early stages of fibrosis.
Liver imaging techniques which measure liver stiffness that correlates with liver fibrosis using ultrasound waves such as: Transient elastography (TE or Fibroscan), Sono elastography (Real-Time Tissue elastography), Acoustic Radiation Force Impulse (ARFI),  Shear Wave elastography and Super Sonic Shear Imaging.7,18-21 These ultrasound elastography methods have advantage over serologic methods regarding the fact that the readings can be obtained immediately without waiting for laboratory results. TE is based on ultrasound technology, which correlates liver fibrosis with hepatic elasticity. TE has limited accuracy in elevated bilirubin, ALT, ascites and with sever steatosis. ARFI elastography is a new way of assessing liver fibrosis which is incorporated in ultrasound machine. ARFI is less influenced by steatosis and has been shown to be useful in patients with ascites. Hence the aim of this study was to evaluate ARFI in patients undergoing liver biopsy and to assess misclassification rate of fibrosis in patients with elevated serum bilirubin, ALT, BMI > 25 kg/m2 and ascites.

Material and Methods

In this prospective observational study we included 171 patients (mean age 46.04±13.34 years, males 60%) undergoing liver biopsy during November 2012 to April 2014. Indications for liver biopsy were, autoimmune liver disease 38 (22.2%), alcoholic liver disease 13 (7.6%), non-alcoholic fatty liver disease 24 (14%), cryptogenic liver disease 10 (5.8%), noncirrhotic portal hypertension 29 (16.9%), viral hepatitis 17 (9.9%) and miscellaneous conditions 40 (23.3%) which included granulomatous liver disease, drug induced liver disease (DILI) and cholestatic liver disease. Patients were evaluated with appropriate clinical history, physical examination, laboratory evaluation and endoscopy. Physical parameters such as height (meters), weight (Kg) and BMI (Kg/m2) were recoded. Patients were subjected to complete blood count (hemoglobin, mean corpuscular volume, WBC and platelet count), liver function tests (bilirubin total and direct, AST, ALT, ALP, GGT, total protein, albumin and INR), viral and autoimmune markers. Aspartate aminotransferase to platelet ratio (APRI index) was calculated in each patient. Diagnosis of autoimmune liver diseases was done using standard international guidelines.22 Ultrasonography evaluation of abdomen was done to determine liver and spleen size, echo texture, ascites and portal vein size. Doppler evaluation of portal and hepatic venous system was done in cases of chronic liver disease, suspected non cirrhotic portal hypertension (NCPH) and extrahepatic portal vein obstruction (EHPVO). Patients were subjected to upper gastrointestinal endoscopy. Esophageal varices were graded using Japanese Research Society criteria as no varices, small and large varices.23 This study was approved by Institutional ethics committee.
ARFI was performed (Acuson S2000, Siemens) to evaluate liver and splenic stiffness in all patients. ARFI was done on empty stomach. ARFI scanning was done between the ribs in the right liver lobe with minimal scanning pressure applied by the operator, patient lying in the dorsal decubitus position and momentary breath holding in left lobe of liver. A measurement depth of 2-3 cm below the liver capsule is chosen to standardize the examination. Similarly, spleen measurements for stiffness was taken in intercostal spaces, 1 cm below the spleen capsule with patient laying in right lateral decubitus and arm maximally abducted. Ten acquisitions of ARFI were performed for each patient and mean value is calculated for reliable measurement for liver and spleen stiffness. Sixty one individuals, age and sex matched without liver disease were taken as controls.
Percutaneous liver biopsy was done under ultrasound guidance on the same day of ARFI. Liver biopsy specimens were processed routinely. Special stain, Masson’s trichrome was done for assessment of fibrosis. Biopsy specimen with more than 10 portal tracts were said to be adequate and examined by experienced hepatopathologist. Biopsies were assessed by Histologic Activity Index (HAI). METAVIR scoring system was used for staging of fibrosis. F0=no fibrosis. F1=periportal fibrosis. F2=Fibrous septa going away from portal areas. F3=bridging fibrosis. F4=cirrhosis.24 Steatosis (macrovesicular) was graded according to the non-alcoholic fatty liver disease activity score as follows: Grade 0: <5% of hepatocytes showing macrovesicular steatosis. Grade 1: 5%-33%.Grade 2:>33%-66% and Grade 3:>66% steatosis.25
ARFI and APRI values were correlated with fibrosis stage on liver biopsy. ARFI and fibrosis were compared with respect to serum bilirubin, ALT, BMI, ascites, steatosis and esophageal varices. Statistical analysis was done using SPSS version 17 software. Quantitative data was presented as mean and standard deviation and analysed using student’s t –test. Qualitative data was presented as frequency and percentage and analysed using chi-square test. P value of < 0.05 was considered as significant.

Results

Control population showed mean ARFI of 1.41±0.26 m/s. Mean ARFI score and interquartile range were 1.70±0.46 (1.33-1.99) in stage 0 fibrosis, 1.92±0.56 (1.45-2.16)  in stage 1-2 fibrosis and 2.49±0.60 (2.07-2.98) in stage 3-4 fibrosis respectively. Mean ARFI was significantly higher (p=0.001) in stage 3-4 fibrosis with 95% confidence interval of 1.31-3.67. There was no statistical difference (p=0.77) in ARFI score between stage 0 and 1-2 fibrosis. (Table1).

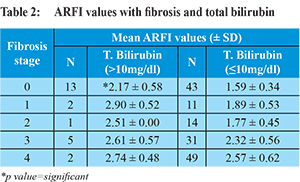

ARFI values and liver fibrosis were compared in patients with total bilirubin >10mg/dl and =10mg/dl. In stage 0 fibrosis ,mean ARFI was 2.17±0.58 with total bilirubin >10 mg/dl which was significantly higher (p=0.002) as compared to 1.59±0.34 with total bilirubin =10 mg. For stages 1 to 4 fibrosis, mean ARFI values were high in patients with total bilirubin >10mg/dl as compared to =10mg/dl. ARFI was miscalculated in all stages of fibrosis with bilirubin >10mg/dl. (Table 2).



ARFI overestimated stages of fibrosis in patients with ALT >300 IU/L. Mean ARFI for stage 0 and 2 fibrosis was 2.48±0.51 and 2.46±0.0 with ALT >300 IU/L and 1.66±0.42 and 1.77±0.46 with ALT =300 IU/L respectively and this difference was statistically significant. (p<0.05). (Table 3).



ARFI value in patients with BMI >25 kg/m2 and = 25 kg/m2 was compared. No significant difference was found in ARFI with BMI >25 kg/m2 or = 25 kg/m2. ARFI values were not affected in patients with high BMI.
Mean ARFI in patients with ascites was higher in all stages of fibrosis as compared to patients without ascites. However the difference was not statistically significant.
ARFI was evaluated in patients with less than and more than grade 1 steatosis on liver biopsy. Mean ARFI at stage 0 fibrosis was 1.27±0.11 in patients with > grade 1 steatosis and 1.75±0.46 with < grade 1 steatosis. This difference was statistically significant. (p=0.001). In remaining stages of fibrosis there was no difference in ARFI with respect to steatosis.
Liver and spleen ARFI was measured in patients with small, large esophageal varices and without varices. Liver ARFI was 2.06±0.6 in patients without varices, 2.3±0.7 with small and 2.2±0.6 large varices.  While splenic ARFI was 2.7±0.5 without varices, 3.2±0.5 with small and 3.2±0.3 large varices. ARFI values of the liver did not correlate with presence and size of esophageal varices. Splenic ARFI values were significantly higher as compared to liver ARFI (p<0.05) and it could differentiate between presence and absence of varices.
Aspartate aminotransferase to platelet ratio (APRI index) was compared with fibrosis stage on liver biopsy. Mean APRI (1.95±4.10) was significantly high in stage 3-4 fibrosis with 95% confidence interval of 6.09-9.99. APRI could not differentiate between stage 0 and stage 1-2 fibrosis.
Mean ARFI in control population was found to be 1.41±0.26 m/s. Mean ARFI in patients with non-cirrhotic portal hypertension (NCPH) without fibrosis was higher (1.60±0.29) than control population but lesser than chronic liver disease patients (1.70±0.46). However the difference was not statistically significant.
When ARFI was evaluated in patients with ALT <300 IU/L, total bilirubin <10 mg/dl, and without ascites, mean ARFI (2.50±0.59) correlated significantly (p=0.001) with stage 3-4 fibrosis. In these patients mean ARFI for stage 1-2 was higher (1.76±0.40) than stage 0 fibrosis (1.58±0.36). However this difference was not statistically significant. (p=0.170) (Table 4).



In this study ARFI was misclassified in overall 36.2% of cases. These were 21(12.3%) of patients with total bilirubin >10mg/dl, 9(5.3 %) ALT >300 IU/L, 32(18.7%) with ascites. (Table 5).




Discussion

TE, the most widely used method for assessment of liver stiffness has major limitations in patients with overweight, obesity and ascites.26,27 Over last three years, several studies have shown the usefulness of ARFI elastography for the assessment of liver stiffness.28-32 Results demonstrated that shear-wave velocity measured by ARFI elastography offers a reliable and non-invasive method for estimating liver fibrosis, even in presence of steatosis and ascites. Majority of studies on ARFI are limited to only one liver disease such as hepatitis B, C infection or NAFLD.20,21,30,33 There is limited data of ARFI in patients with other liver diseases. In this study we have analysed role of ARFI in various liver diseases such as autoimmune liver disease, alcoholic liver disease, non-alcoholic fatty liver disease, cryptogenic liver disease, noncirrhotic portal hypertension, viral hepatitis and miscellaneous conditions which included granulomatous liver disease, drug induced liver disease (DILI) and cholestatic liver disease. Our results have shown that ARFI had good predictive value for diagnosis of stage 3-4 fibrosis with 95% confidence interval of 1.31 to 3.67. However it failed to correlate with lesser degree of fibrosis. These observations were similar to Yap et al34 who have assessed feasibility of ARFI in 70 patients of chronic liver disease and have shown strong correlation of ARFI with higher fibrosis scores compared to lower ones. Haque et al35 investigated feasibility of ARFI in 21 patients of chronic liver disease (HCV=16, HBV=1, Both HBV & HCV=1, alcoholic liver disease=1, others=2). Strong correlation was observed between ARFI and fibrosis. ARFI accuracy was maximum in predicting severe fibrosis and cirrhosis. Takahashi et al36 evaluated ARFI for fibrosis staging in 55 consecutive patients of chronic liver disease. Liver stiffness measured by ARFI correlated with histological fibrosis. (p<0.0001) with highest confidence in stage 4 fibrosis.
TE has been reported to have impaired specificity in presence of cholestasis, obesity, steatosis, elevated bilirubin and ALT.37-42 In this study we have observed similar limitations for ARFI. Overall 36.2% of cases were misclassified as high ARFI. These were patients with high serum bilirubin, raised ALT and presence of ascites. ARFI values could correlate with all stages of fibrosis when serum bilirubin was <10mg/dl, ALT<300 IU/L and patient without ascites. Pfeifer et al37 have shown that cholestasis significantly increases liver stiffness measured with ARFI. Patients with sonographic cholestasis and increased cholestatic blood values (Bilirubin, ?GT, ALP >?2 times ULN) were included in their study. ARFI values were above the cut-off for cirrhosis (1.8 ?m/s) in all patients with a mean of 2.91 ?m/s ±?0.89 ?m/s without a history or signs of cirrhosis. Attia et al38 have shown increased liver stiffness in biliary obstruction which was decreased after endoscopic retrograde cholangiography irrespective of the aetiology. In acute liver failure, hepatic necrosis can mimic liver cirrhosis by ARFI estimation.  Karlas et al39 compared ARFI in 3 patients with acute liver failure with healthy controls (n=33) and cases with liver cirrhosis (n=21). ARFI values were significantly increased in acute liver failure as compared to healthy controls (p=0.001) and in patients with cirrhosis. Of 3 patients two underwent liver transplantation. Explants showed massive necrosis, but no signs of chronic liver disease. Third patient recovered spontaneously and showed reduced ARFI results during follow-up.
Kuroda et al40 measured liver stiffness in patients with acute liver failure using ARFI for predicting the prognosis of these patients. ARFI was found to be significantly higher in fulminant hepatitis than in acute hepatitis (P?<?0.001).
Hepatic steatosis and obesity are other factors that influence liver stiffness. Fatty tissues are softer and are known to reduce ARFI values.30,41-43 In this study AFRI was higher in patients with > grade 1 steatosis at stage 0 fibrosis. In remaining stages of fibrosis there was no difference in ARFI with severity of steatosis. Dong et al44 studied various non-invasive markers (ARFI, fibroscan and Ferns’ index) for fibrosis in chronic hepatitis B patients. They have assessed impact of inflammatory activity and steatosis. Diagnostic accuracy for fibrosis with these methods was good in presence of inflammation (p<0.001) but not with steatosis (p=0.407).
Non-invasive methods for diagnosing esophageal varices in cirrhotic patients are required to avoid unnecessary invasive screening endoscopic examinations. TE can predict clinically significant portal hypertension however it has low specificity to determine esophageal varices. In this study liver ARFI could not correlate with size of varices but splenic ARFI could differentiate between presence and absence of varices. Morishita et al45 investigated liver stiffness by ARFI for diagnosis of esophageal varices and high-risk esophageal varices among patients with HCV cirrhosis.  ARFI value increased significantly is patients with esophageal varices (p<0.001). The ARFI value for high-risk varices was significantly higher than that for low-risk varices (p<0.001).
Mean ARFI in patients with ascites was higher as compared to those without ascites in this study. Bota and Sporea et al46 have shown that mean liver stiffness measurements by ARFI were statistically and significantly higher in cirrhotic with ascites than in those with non-cirrhotic ascites: 3.04±0.70 vs 1.45±0.59 m/s (P<0.001). Salzl et al29 evaluated 88 patients with cirrhosis for portal hypertension and esophageal varices using TE and ARFI. TE was not reliable method for liver stiffness in 22(25%) patients and ARFI in 1(1?%) patient, due to ascites or obesity. Sensitivity and specificity for ARFI (AUC 0.855) was higher (71.4% and 87.5%, respectively) as compared to other methods.
In NCPH, ARFI value was found to be higher than controls and lower than patients with cirrhosis in this study. This indicates that in patients with established portal hypertension, ARFI values less than stage 3-4 fibrosis can predict diagnosis of NCPH. This is similar to study by Sharma et al.47 They have evaluated liver and splenic stiffness by TE in 65 patients of extrahepatic portal vein obstruction (EHPVO). Liver and splenic stiffness were found to be higher in EHPVO than controls. Patients with variceal bleed had higher splenic stiffness than those without bleed.
In conclusion, ARFI was reliable predictor of advanced fibrosis. However ARFI could not differentiate between stage 0 and early fibrosis. ARFI values were not reliable in patients with bilirubin >10 mg/dl, ALT>300 IU/L and ascites.
